Quixel Mixer Displacement Not Working: Troubleshooting And Practical Solutions
Artists and 3D designers rely on Quixel Mixer for creating realistic materials and textures. One of its most powerful features is displacement mapping, which adds real 3D detail to surfaces instead of just faking depth with shading. But sometimes, users struggle with displacement not working as expected. This can be confusing, especially if you are new to Mixer or 3D workflows. Let’s look at why these problems happen, how to solve them, and what you can do to get the most from displacement in Quixel Mixer.
How Quixel Mixer Handles Displacement
Displacement mapping in Quixel Mixer works by using a grayscale texture (height map) to push or pull the mesh surface. When you export your material or preview it in Mixer, you should see real changes in the mesh geometry—like cracks, bumps, or stones that actually rise from the surface.
However, not all 3D programs or renderers handle displacement the same way. Sometimes, what you see in Mixer may not match what you see in your final render or game engine. Also, displacement needs specific settings to work properly in Mixer itself.
Key Requirements For Displacement To Work
- Height Map or Displacement Map: You need a good quality height or displacement map connected to your material.
- High Mesh Subdivision: The mesh must have enough polygons for the displacement to show detail.
- Correct Export Settings: Mixer must export the maps in the right format for your renderer or engine.
- Renderer Support: The software or engine where you use the material must support real displacement, not just normal maps.
Common Reasons Displacement Fails In Mixer
Let’s look at the main causes of displacement not working, plus what you can do about them.
1. No Height Map Connected
Mixer’s displacement relies on a height map. If your surface or layer doesn’t have one, displacement will not show. Always check the layer stack and see if the displacement channel is active.
2. Insufficient Mesh Detail
Displacement can only push around existing polygons. If your mesh is low poly, the effect will look blocky or won’t appear at all. In Mixer, you can increase mesh tessellation for the preview, but in your final engine, you may need to subdivide your mesh or use tessellation shaders.
3. Displacement Amount Is Set To Zero
It sounds simple, but often the displacement strength slider is at zero or too low to see any effect. Make sure the slider is set to a noticeable value.
4. Wrong Export Or Render Settings
If you export your maps and load them into another program, be sure to use the displacement map, not just the normal map. Some programs need you to manually connect the height map to the displacement input.
5. Conflicts With Normal Maps
Sometimes, a strong normal map can cancel out the effect of displacement, or vice versa. Balance the strength of both maps for a natural look.
Troubleshooting Steps
Here is a practical step-by-step approach to solve displacement issues in Quixel Mixer:
- Check Height Map: Make sure your main layer or material has a visible, high-contrast height map.
- Increase Subdivision: In Mixer’s 3D preview, raise the tessellation level to see more detail.
- Adjust Displacement Strength: Move the displacement slider and watch the mesh. Start with a high value and lower it as needed.
- Preview UVs: Some UV layouts cause stretching or seams. Try a simple mesh (like a plane) with clean UVs for testing.
- Export and Test: Export your maps and load them into your target software. Confirm that the displacement map is connected and supported.
- Compare With and Without Displacement: Toggle the effect to see if it’s really working or if you need to adjust settings.
Practical Example: Fixing Displacement On A Stone Ground Material
Suppose you are making a realistic stone ground. You add a Quixel Megascans material and notice the stones look flat. Here’s how you can fix it:
- In the layer stack, check that the displacement channel is enabled.
- View the height map—if it’s almost gray, boost the contrast or choose a better map.
- Go to the 3D preview settings and increase tessellation.
- Slide the displacement amount higher. Now the stones should rise from the surface.
- When you export, select “Height” or “Displacement” in the export options.
- In your 3D software, apply the displacement map to a subdivided mesh.

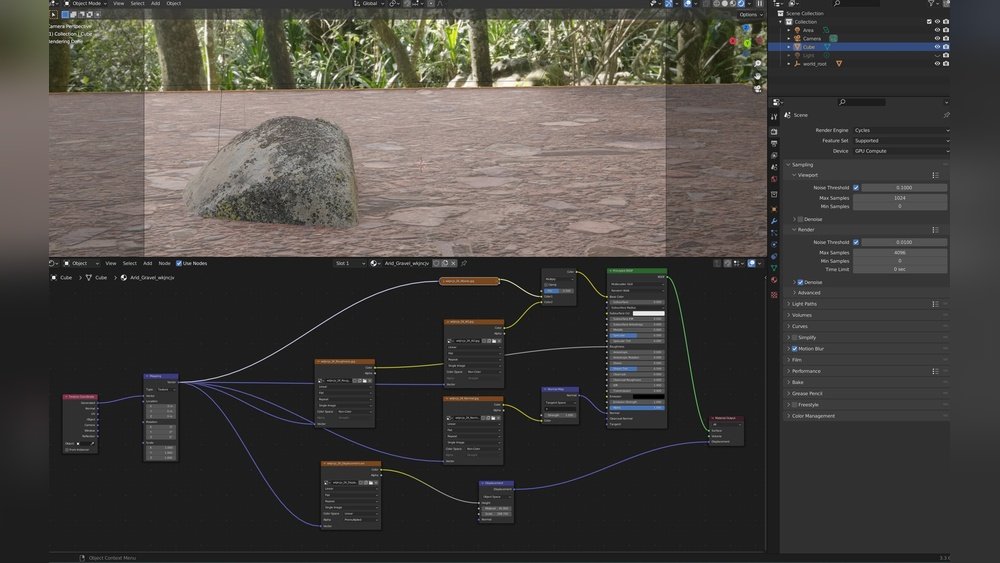

Credit: www.youtube.com
Comparison: Displacement Vs Normal Map
Understanding the difference helps avoid confusion. Here’s a quick comparison:
| Feature | Displacement Map | Normal Map |
|---|---|---|
| Effect | Changes real geometry | Fakes surface details |
| Performance | Slower, needs more power | Fast, lightweight |
| Best for | Deep cracks, height changes | Small bumps, scratches |
Key Export Settings In Mixer
If you want displacement to work in your target software, these Mixer export settings matter:
| Setting | Recommended Value | Why Important |
|---|---|---|
| Resolution | 2K or 4K | More detail in displacement |
| File Type | EXR, PNG, or TIFF | Supports high bit depth |
| Displacement Output | Linear (not sRGB) | Accurate height data |
Many beginners miss that using 8-bit JPG can crush the subtle height data. Always use high bit-depth formats for displacement.
Real-world Issues And Solutions
Some users face platform-specific problems. For example, exporting to Unreal Engine needs special settings. Unreal uses “height” for tessellation, so you must connect your displacement map to the right input. In Blender, the mesh must be subdivided, and the modifier stack must be correct.
A less-known trick: Try viewing your displacement map as a grayscale image. If it looks too flat or noisy, tweak it in Photoshop or Mixer before applying. Sometimes, even a small adjustment makes a big difference in the final result.
When Displacement Isn’t Necessary
Not every material needs real displacement. For smooth surfaces like metal or painted wood, a normal map might be enough. Use displacement only for materials where you need strong height changes, like rocks, bricks, or mud.
Credit: blenderartists.org
Useful Resources
If you want to go deeper, the official Quixel Help Center explains more about displacement in Mixer and common workflows.
Frequently Asked Questions
Why Does My Displacement Look Flat In Quixel Mixer?
This usually happens if your height map is low contrast, the mesh isn’t subdivided enough, or the displacement amount is too low. Try boosting these settings and check if the effect improves.
What File Format Should I Use For Exporting Displacement Maps?
Use EXR, PNG, or TIFF formats with at least 16 bits per channel. Avoid JPG, as it removes important height detail.
Can I Preview Real Displacement In Quixel Mixer?
Yes, but only in the 3D preview window. Increase the tessellation or subdivision to see more detail. Remember, the preview is not always exactly like your final render in other software.
My Displacement Works In Mixer But Not In Unreal Engine. Why?
Unreal Engine needs the displacement map connected to the right material input, and your mesh must support tessellation. Check your material setup in Unreal and ensure you are using the correct input.
Are There Alternatives To Displacement For Adding Detail?
Yes, normal maps are a good alternative for small details. They are faster and use less memory but cannot create real height changes like displacement can.
Solving displacement issues in Quixel Mixer takes a bit of practice, but with these steps, you’ll get the detail and realism your projects deserve. Always test with different settings and review your maps before exporting to avoid surprises later.
