If you use Blender for 3D modeling, you may have tried the MeasureIt add-on to display dimensions, angles, and distances inside your scenes. But sometimes, you open Blender, turn on MeasureIt, and… nothing happens. The lines don’t show up, or the numbers are missing. This can be frustrating, especially if you need accurate measurements for your project.
Let’s dig into why MeasureIt is not working and, more importantly, how you can fix it quickly. Whether you’re a hobbyist or a professional, these tips will help you get back on track without wasting hours searching for answers.
What Is Measureit In Blender?
Before we jump into troubleshooting, it helps to understand what MeasureIt actually does. MeasureIt is a built-in Blender add-on that lets you overlay measurement data directly in your 3D Viewport or renders. It’s popular with architects, engineers, and anyone who needs precise dimensions.
You activate MeasureIt from Blender’s Edit > Preferences > Add-ons menu. Once active, you’ll find its controls in the N-panel under the View tab. You can measure lengths, angles, or even add custom annotations.
But even when MeasureIt is enabled, users sometimes find that:
- Measurement lines are invisible
- Text numbers don’t appear
- Rendered outputs are blank
- Add-on buttons don’t respond
Let’s look at what typically causes these problems.
Common Reasons Measureit Is Not Working
Several things can make MeasureIt fail. Here are the most frequent issues:
1. Add-on Not Enabled Correctly
Sometimes, you enable the add-on but forget to click “Save Preferences,” so it turns off after a restart.
2. Wrong Object Or Mode Selected
MeasureIt only works in Object Mode or Edit Mode with mesh objects. If you try it with cameras, lights, or curves, nothing happens.
3. Display Overlays Turned Off
Blender’s Viewport has Overlay settings. If overlays are hidden, MeasureIt lines and numbers won’t show.
4. Layer Or Collection Hidden
If your object is in a hidden collection, MeasureIt won’t find it.
5. Graphics Card Or Driver Issues
Outdated GPU drivers can prevent MeasureIt’s graphics from displaying.
6. Conflicting Add-ons
Other add-ons that change the viewport, like screencasting or custom drawing tools, may block MeasureIt.
7. Outdated Blender Version
MeasureIt sometimes breaks on older Blender versions, especially after big updates.
Here’s a quick comparison of common causes:
| Issue | Effect on MeasureIt | How to Check |
|---|---|---|
| Overlays Off | No measurements visible | Look for “Overlays” button in Viewport |
| Wrong Mode | Add-on seems inactive | Switch to Object/Edit Mode |
| Hidden Collection | No lines/numbers | Check Outliner visibility |

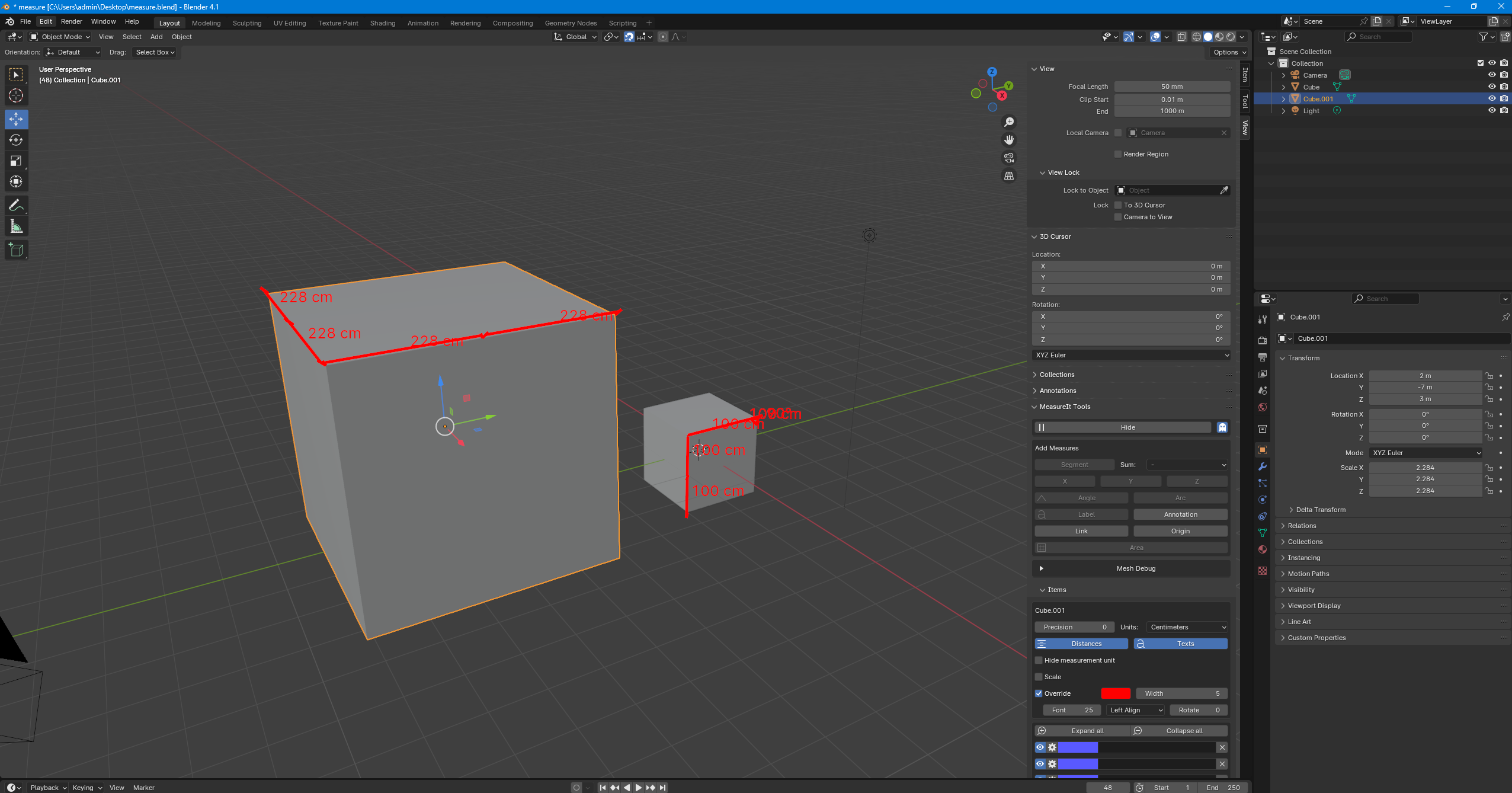

Credit: blenderartists.org
How To Fix Measureit Problems
If MeasureIt is not working, follow these steps. Usually, you’ll solve the problem in a few minutes.
1. Enable The Add-on Properly
- Go to Edit > Preferences > Add-ons
- Search for MeasureIt
- Check the box to enable
- Click Save Preferences at the bottom
If you skip the last step, Blender forgets your add-on next time you start.
2. Check Overlay Settings
- In the top right of your 3D Viewport, find the Overlays button.
- Make sure it’s turned on.
- Under Overlays dropdown, ensure MeasureIt is checked.
This is a very common mistake. Without overlays, you won’t see any visual guides, including MeasureIt’s output.
3. Use The Correct Mode And Object
- Select a mesh object (not a light or camera).
- Be in Object Mode or Edit Mode.
- Try adding a measurement again.
If you don’t select a supported object, MeasureIt does nothing.
4. Update Blender And Graphics Drivers
Older versions can break add-on compatibility. Update Blender from the official site. Also, update your graphics card driver from the manufacturer’s website.
Some users report that MeasureIt lines are missing on older Intel integrated graphics or out-of-date NVIDIA/AMD drivers.
5. Reset Preferences And Disable Conflicting Add-ons
If you suspect an add-on conflict:
- Save your work.
- Go to Edit > Preferences > Save & Load > Load Factory Settings.
- Re-enable only MeasureIt.
- See if the problem is fixed.
If so, enable your other add-ons one by one to find the conflict.
6. Check Collection And Object Visibility
- Open the Outliner panel.
- Make sure your object and its collection are both visible (eye icon).
- Hidden objects don’t display measurements.
7. Rendered Output Not Showing?
If you use MeasureIt Render, you need to:
- Click “MeasureIt” tab in N-panel
- Click “Render” inside MeasureIt
- Check the Image Editor for the output
Rendered output is not always in your main viewport.
Here’s a summary comparison of quick fixes:
| Problem | Quick Fix |
|---|---|
| No lines visible | Turn on Overlays |
| Add-on missing | Enable and Save Preferences |
| Wrong object type | Select a mesh |
| Output blank after render | Check Image Editor, not main Viewport |
Extra Tips And Hidden Issues
Many users miss these points:
- Custom themes can sometimes hide MeasureIt’s colors. Try switching to Blender’s default theme.
- If you use Workspaces, MeasureIt might be active only in one workspace. Try switching to Layout or Modeling.
- Saving your file and reopening Blender can sometimes refresh MeasureIt’s display.
For more advanced troubleshooting, check the Console (Window > Toggle System Console) for error messages. If you see a Python error related to MeasureIt, consider reinstalling the add-on.
Credit: blender.stackexchange.com
When To Reinstall Or Reset
If nothing works, you may need to reinstall Blender or reset your preferences.
- Download the latest Blender from the official Blender site.
- Reset preferences to factory defaults.
- Add MeasureIt and test before installing other add-ons.
This is rare but sometimes needed after major Blender updates.
Frequently Asked Questions
Why Are My Measureit Lines Not Showing In The Viewport?
This usually means overlays are turned off or you’re not in the right mode. Check the Overlays button in the 3D Viewport and switch to Object or Edit Mode.
Can Measureit Measure Curved Objects Or Non-mesh Items?
No, MeasureIt only works with mesh objects. It won’t measure curves, lights, or cameras directly.
How Do I Make Measureit Measurements Appear In My Renders?
Click the “Render” button in the MeasureIt panel. The output appears in the Image Editor, not the main Viewport. Make sure to save the rendered image if you need it.
Does Measureit Work In All Blender Versions?
MeasureIt is included in Blender 2.8 and above. It may not work correctly in much older versions or after major Blender updates. Always use the latest Blender version for best results.
What If Measureit Still Does Not Work After All Fixes?
Consider resetting Blender to factory defaults or reinstalling the add-on. If the issue continues, check for GPU or driver issues, or ask for help on the official Blender forums.
Getting MeasureIt to work smoothly saves time and reduces errors in your modeling projects. Most problems are easy to fix once you know where to look. With the right settings and a few checks, you’ll have accurate measurements in Blender every time.
