If you work with Blender’s cloth simulation, you know how useful the Cloth Pin tool can be. It lets you “pin” certain vertices of your mesh, making them stay in place while the rest of the fabric moves. But sometimes, you try to use the cloth pin and nothing happens. Maybe your mesh falls straight down, or the pinned area still moves. This problem is frustrating, especially if you’re new to Blender. Let’s look at why the Blender Cloth Pin might not work and how you can fix it.
How The Cloth Pin Works In Blender
The Cloth Pin feature uses something called a vertex group. When you create a vertex group and assign weights to certain vertices, you tell Blender which parts of your mesh should be “pinned” during simulation. The higher the weight (1.0 is max), the stronger the pin.
Here’s a simple example:
- You have a flag mesh.
- You want to pin the top edge so it hangs like a real flag.
- You assign those top vertices to a vertex group with weight 1.0.
- In the Cloth modifier, you select that group as your Pin Group.
If all works well, the top edge stays in place while the rest of the flag waves.
Common Reasons Cloth Pin Is Not Working
Let’s go through the main causes. For each, you’ll see a real-world example and what you can do.
1. Vertex Group Not Assigned Or Not Selected

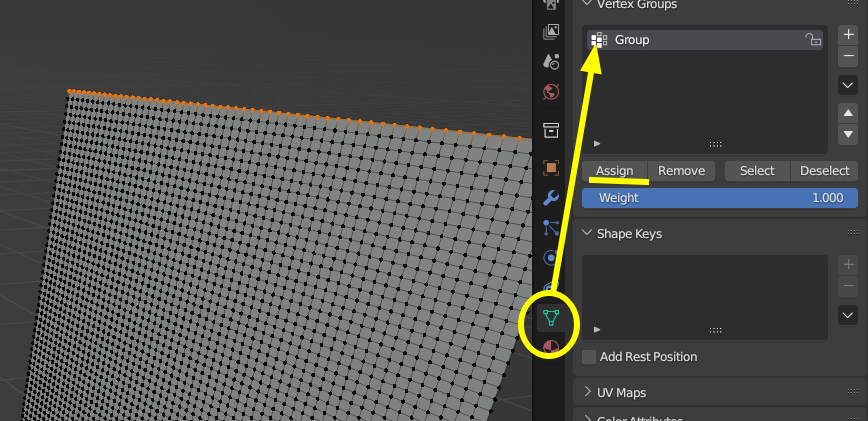

A frequent mistake is forgetting to assign a vertex group or not choosing it in the Cloth modifier. Blender can’t guess which vertices you want to pin.
Check these steps:
- In Edit Mode, select the vertices you want to pin.
- In the Object Data Properties, create a new vertex group.
- Click “Assign” to add the selected vertices.
- Set the weight to 1.0 for full pinning.
- In the Cloth modifier, set the Pin Group to this vertex group.
If your mesh is large, double-check that the correct vertices are assigned.
2. Weight Painting Issues
If the vertex weights are too low, pinning is weak or non-existent. Even a small drop from 1. 0 to 0. 9 can make a big difference.
- Use Weight Paint mode to check: Red means full pin, blue means no pin.
- If you see green or yellow where you expect red, those vertices are only partially pinned.
A common beginner mistake is painting weights softly, thinking it will “blend” the pinning. In most cases, you want the pinned area fully red (weight 1. 0).
3. Wrong Modifier Order
The order of modifiers in the stack matters in Blender. If you have a Subdivision Surface or Mirror modifier before the Cloth modifier, the vertex groups might not match as expected.
Here’s a quick reference:
| Modifier | Recommended Order |
|---|---|
| Cloth | First (after Armature if used) |
| Subdivision Surface | After Cloth |
| Mirror | Before Cloth (if mesh is symmetrical) |
If you see the pin not working, move the Cloth modifier up the stack and test again.
4. Mesh Topology Problems
Sometimes, your mesh is not dense enough or is too irregular. If there are not enough vertices where you want to pin, or if the mesh has holes or non-manifold edges, the simulation may act strangely.
What to check:
- Make sure there are enough vertices at the pin location.
- Use “Subdivision Surface” to add more geometry if needed.
- Look for overlapping faces or disconnected vertices.
If necessary, clean up your mesh with “Merge by Distance” to remove stray points.
5. Applying The Wrong Object
If you have several objects in your scene, make sure you’re working on the correct one. Sometimes, you assign the pin group to one object but add the Cloth modifier to another. Double-check your selection before painting or adding modifiers.
Credit: www.youtube.com
Troubleshooting Steps
Let’s put it all together into a quick checklist you can follow if the Cloth Pin is not working:
- Check Vertex Group: Is the group assigned to the right vertices with weight 1.0?
- Assign in Modifier: Did you select the correct vertex group in the Pin Group field of the Cloth modifier?
- Weight Paint: Are the pinned areas fully red (weight 1.0)?
- Modifier Order: Is the Cloth modifier before Subdivision or other geometry-changing modifiers?
- Mesh Quality: Are there enough vertices at the pin location?
- Object Selection: Are you working on the right object?
Most issues are solved by carefully following these steps.
Advanced Tips For Reliable Pinning
There are a few things even experienced users miss:
- If you want partial pinning (soft movement but some control), use weights between 0.2 and 0.8. This makes the fabric less stiff at the pinned area, leading to more natural animation.
- For very detailed cloth, use a higher mesh density at the pinned edge. This gives Blender more information to hold the fabric in place.
- If you use an Armature or Shape Keys, apply them before the Cloth modifier to avoid conflicts.
- Sometimes, Blender’s cache system can cause “stuck” simulations. Click “Free All” in the Cloth cache panel after making changes.
Comparing Cloth Pin To Other Constraint Methods
It’s useful to see how Cloth Pin compares to other ways of fixing cloth in Blender.
| Method | Strengths | Weaknesses |
|---|---|---|
| Cloth Pin (Vertex Group) | Easy to set up, flexible weights | Needs careful weight painting |
| Hooks | Direct control with empties or bones | Less natural movement |
| Collision Objects | Realistic “catching” or holding | Computationally expensive |
For most simple cloth effects, pinning with vertex groups is the fastest and most reliable option.
Real-world Example: Pinning A Cape
Suppose you’re animating a superhero’s cape. You want the top of the cape to stay attached to the shoulders.
- Select the cape’s top edge in Edit Mode.
- Assign it to a vertex group with weight 1.0.
- In the Cloth modifier, set this group as the Pin Group.
- Move the Cloth modifier above Subdivision Surface in the stack.
- Test the simulation. The top should stay in place, and the cape should flow.
If it doesn’t work, check the tips above. Often, a quick check in Weight Paint mode shows a missing area or wrong weight.
Credit: docs.blender.org
When To Use Alternatives
If Cloth Pin still won’t work, consider using a Hook modifier. This allows you to attach mesh points to an empty or bone for direct control. It’s less flexible but sometimes more stable, especially for very complex meshes.
For more on Blender’s cloth simulation system, see the official Blender Manual.
Frequently Asked Questions
Why Is My Pin Group Not Showing Up In The Cloth Modifier?
Make sure you created the vertex group and assigned it to the right object. If your mesh is in Edit Mode, switch back to Object Mode to see updates.
Can I Pin Multiple Areas Of A Cloth Mesh?
Yes, you can. Assign different parts to the same vertex group, or use multiple groups if you want different pin strengths.
Does Cloth Pinning Work With Animated Objects?
Yes, but the Cloth modifier must come after any deformation (like Armature or Shape Key) in the modifier stack.
What’s The Best Mesh Density For Pinning?
Aim for at least 2–3 rows of vertices at the pin location. Too few, and the pin will look weak. Too many, and simulation may slow down.
Why Does The Cloth Still Move Even When Fully Pinned?
Check for weight painting errors and make sure your Pin Group weight is set to 1. 0. Also, check the modifier order and mesh quality.
Fixing the Blender Cloth Pin not working issue is usually about careful setup. With a little patience and these tips, you’ll get reliable results for any project.
Credit: blenderartists.org
